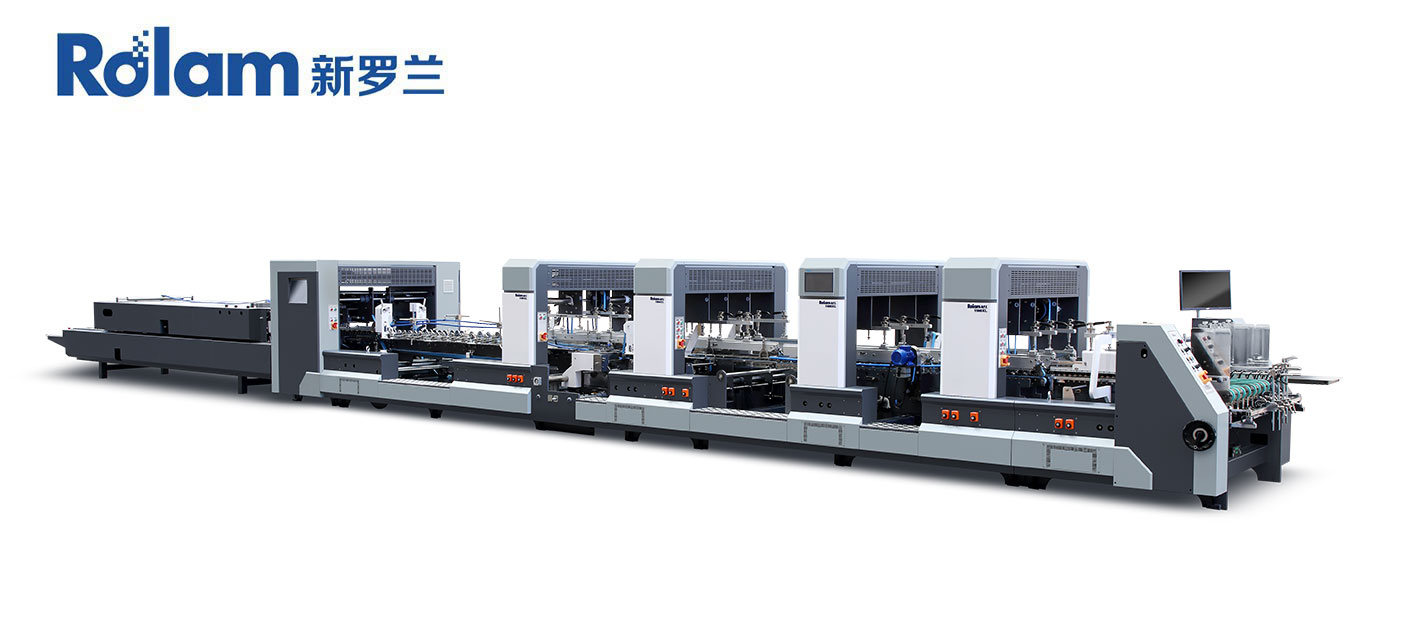

Coladeira de cantos automática inteligente de alta velocidade da série XL com 4 a 6 cantos

Model

650

800

1100

Paper material

Cardboard 210-800gsm, A/B/E Flute

Max.Speed

400m/min

Max. thickness of the folded box

12mm

12mm

12mm

Way of folding

Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°

Power supply

3P 380V 50HZ

Blank width

650mm

800mm

1100mm

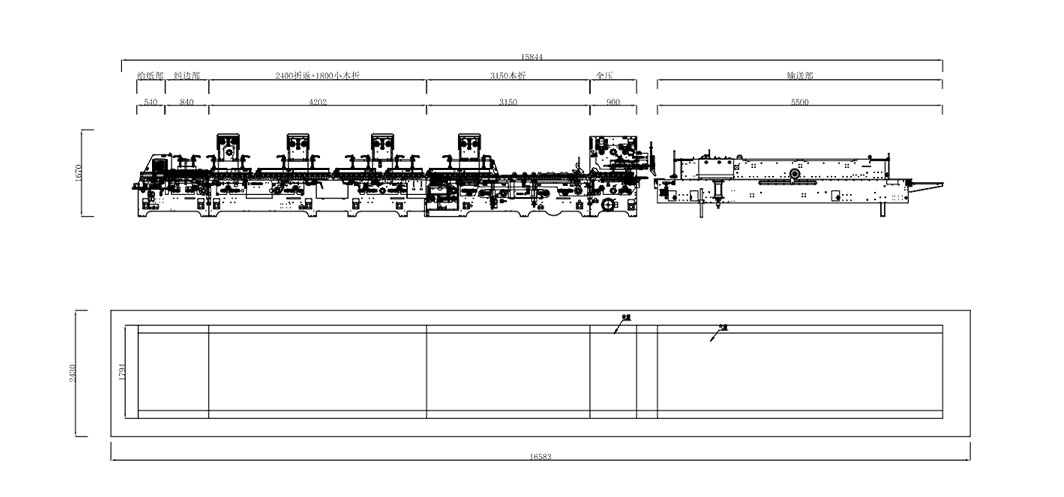

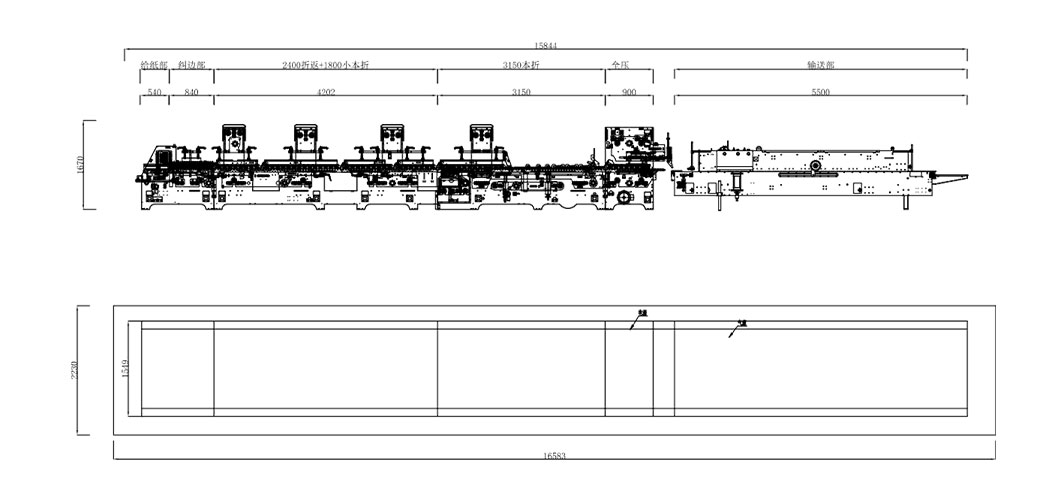

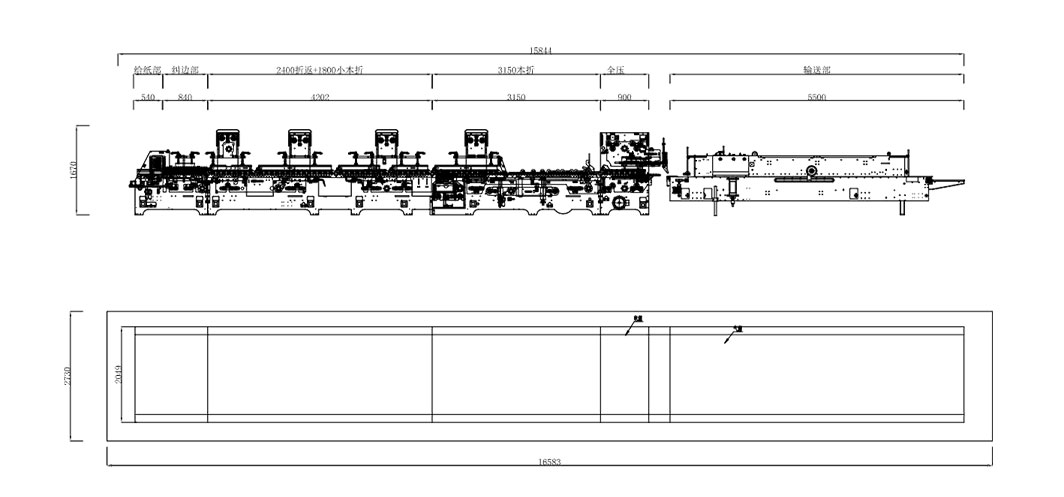

Length x Width x Height

15.8x1.54x1.67m

15.8x1.79x1.67m

15.8x2.0x1.67m

Net Weight

7.0T

8.0T

9.0T

Total power

30kw

32kw

32kw

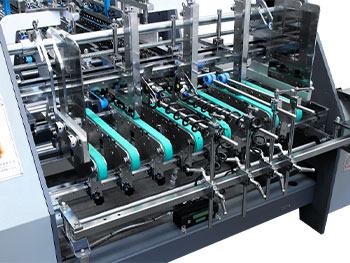

Paper Feeding Section

1. A variable frequency motor drives the feed part and synchronizes with the main engine
2. Feeder section equipped with three pieces of feeding knives, adjust the asymmetrical lengths as per the box sample.
3. Rail width can be horizontally adjusted and set by a seven-piece 30mm thickened feeding belt and a 10mm metal board.
4. Operators can operate the feeder switch in any region.
5. Embossing drive wheel guides the feeding section belt, side feed gates on the right and left are adjustable according to the products.
6. Vibration device coordinates with the motor, which helps the machine feed consecutively and automatically, quickly and simply. The feeder section can stack 400MM height paperboard.

Aligner Section

The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

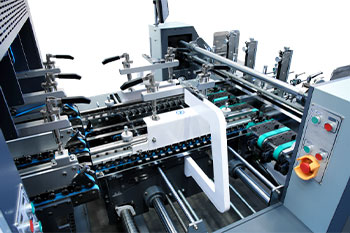

Pre-folding Section

Special first folding line pre-fold 180°. Third line 165°, which perfectly meets the requirements of automatic packaging y.

Crash Lock Bottom Section

Compete set of crash lock bottom devices makes the lock bottom Part perfectly. Sectional-type upper Belt board with a special design.

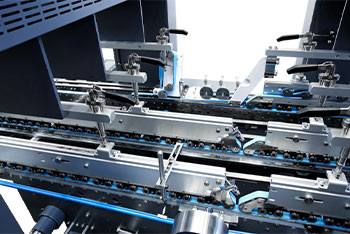

Lower Gluing Tank

1. The lower gluing tank is 2L.
2. Easy to remove and clean
3. Electronic upper gluing system by guns.

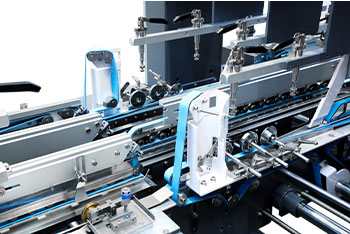

Folding and Closing

1. The Second and fourth folding line 180°.
2. The folding and closing section transmits from the right and left side, the belt speed can be adjusted separately, and the way the box runs can be corrected to ensure straight delivery.
3. Final Folding lower central carrier pneumatically up and down

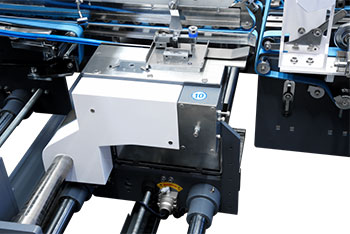

Rombone Section

1. The up and down belt can be adjusted separately.
2. Equipped with a photo-electronic counting device and a kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with a feeding paper inspection device.
3. With a spanking function for the RSC-type box.

Box Squaring

Full press section continuously and automatically, with a box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well-aligned flow.

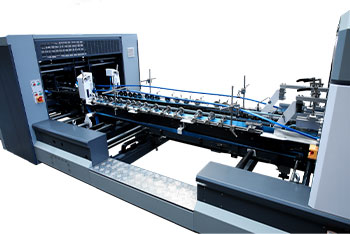

Transmission

1. Equipped with a special additional sponge belt for the pressing of the box valley part.
2. Upper section moves back and forward, allowing for different box lengths.

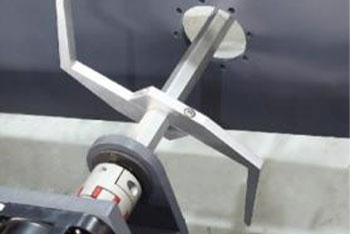

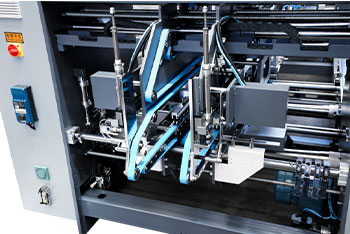

4 and 6-Corner

Motorized and untimed electronic back-folding system with intelligent servo motor technology.

Cold Glue System

Equipped with three guns, convenient in the production of 4/6 corner boxes and various special-shaped boxes, gluing
quickly and accurately sizing.

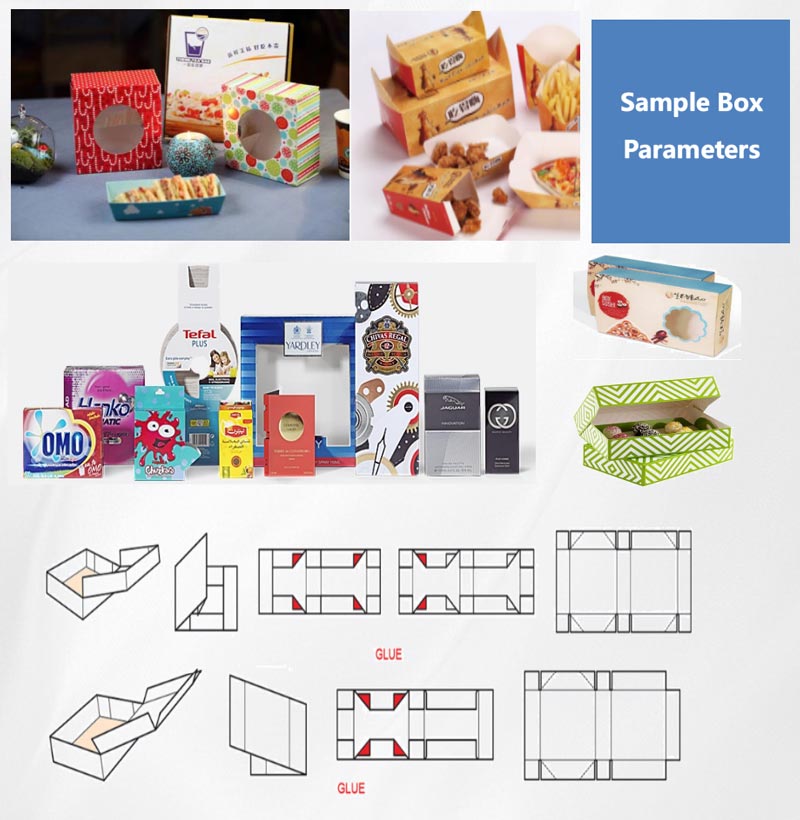

Straight Line Box

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

A

140-650

160-800

220-1100

B

70-800

70-800

70-800

C(min)

70

70

70

D

10-20

10-20

70-800

E

65-320

75-390

105-540

Crash Lock Bottom Box

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

A

140-650

160-800

220-1100

B

100-800

100-800

100-800

C(Min)

70

70

70

D

10-20

10-20

10-20

E

65-320

75-390

105-540

H

30-100

30-100

30-100

4 Corners Box

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

A

160-650

160-800

160-1100

B

90

90

105

H

70-800

70-800

70-800

6 Corners / 6 Corners in Climbing Way

Model

650Type

800 Type

1100 Type

Way of folding

Two carriers

Two carriers

Two/three carriers

A

250-650

250-800

270-1100

B

130-800

130-800

130-800

H

30-100

30-100

30-100
